Largo BTH 80404

Surface treatment options: chrome/white/RAL
HVAC number: chrome 5488228/white 5488229
Number of horizontal bars: 4
Calculated power, W, domestic water supply +65/55/22 °C: chrome 84 W / white 114 W

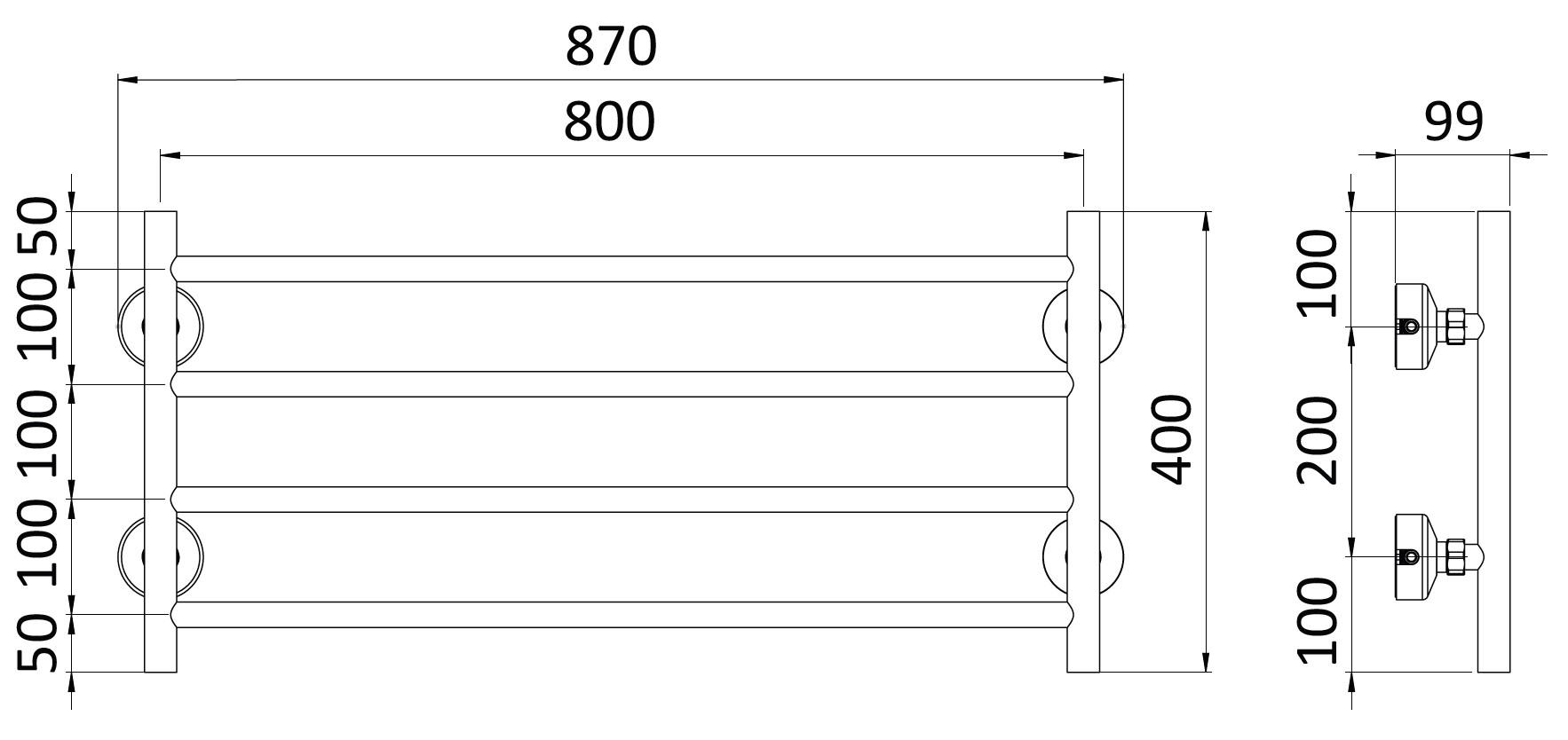

Total width (mm): 870
Total height (mm): 400
Total distance from the wall (mm): 99
Connection distance from the centre of outputs to the centre (mm): 200
Connection method: Side connection
Suitability: domestic hot water/heating system
More information:

Connection from the side; from left or right (two bleeder screws).

Accessories: Shoe/glove hanger pair RAL special colours Surface-mounted coupling pair Eccentric coupling pair
